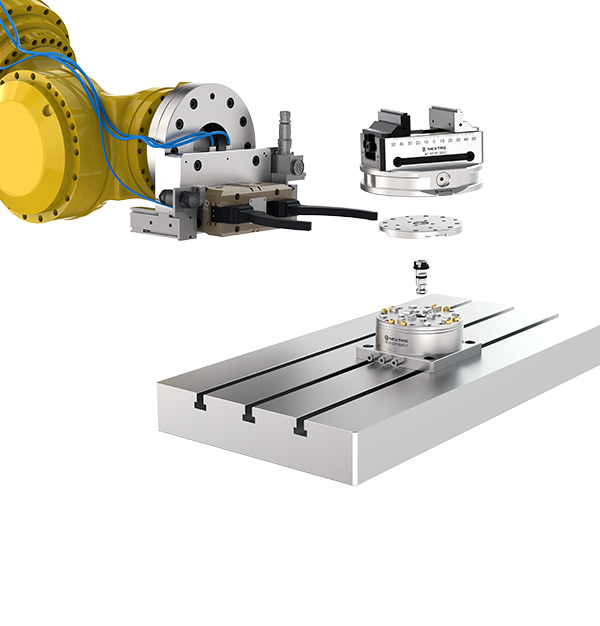

- R-Series Datum Chuck System
Pneumatic chuck mechanical self-locking clamping structure design, with pneumatic unlocking, automatic cleaning and air tightness detection function;
Chuck repeatability <0.003mm, for high-precision manufacturing, heavy-duty cutting, clamping and quick-change standard interface;
The chuck is pneumatically unlocked for easy disassembly and reassembly, and the sub-clamps can be realized in off-line clamping quick-change mode to increase the machine tool turnover rate;
The standardized modular design of the chuck and fixture can be universally used in all kinds of flexible extension applications for industrial systems.
Industry common standard interface, high versatility, can realize automated standard operation.
■ Repeat positioning accuracy: ＜0.003mm
■ Clamping force: 10000N
■ Unlocking air pressure: 0.5Mpa-0.8Mpa
■ Positioning reference surfaces are self-cleaning, airtightness checking and anti-debris cleaning of bores
■ Fixed indexing position: 4x90°
■ Clamping load: 45kg
- Application
-
Aerospace
-
Defense Industry
-
Semiconductor Industry
-
Automobile Manufacturing
-
Shipbuilding Industry
-
Medical Equipment
-
Automatic Production
-
Laser Intelligent Manufacturing
